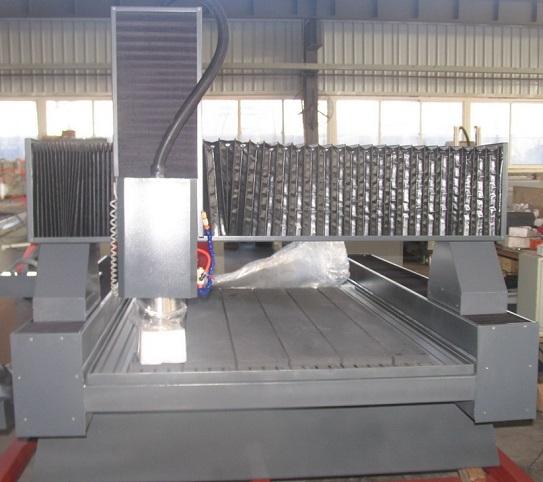

Model No.︰900mm*1500mm
Brand Name︰TZJD
Country of Origin︰China
Unit Price︰US $ 6000 / pc
Minimum Order︰1 pc
Product Features:
1. Cast thickness steel body, solid without distortion. "Trapezoid" shape structure,
It very easily to endure heavy-duty marble materials.
2. Germany Ballscrew system for Z axis, high-efficiency wrking. Rack gear for X Y axis,
high-speed with best rigidity.
3. Taiwan HIWIN Square orbits. High-efficiency & Long-time life.
4. Water-cooling spindle, can be working for a long term.
5. Broken-point memory, ensures the continuity of work when inciddent happens.
6. DSP Controller system, conveniently to operate.
7. Water-cooling Spindle power 4.5KW/6KW/7.5KW/9KW, fasting-speed & working-efficiency.
8. U flash interface.
9. Software compatibility: Types/Artcam/astmate/Wentai these CAD/CAM designing software.
10. Water-cooling system, mainly improve the tools working-life.
11. Double motors for Y axis, confirm the working under stable.
12. Water tank system on the body & water-cooled system automatically.
13. Dust collector & waterproof system, to protecy the whole body.
Technical specification:
Discription |
TZJD-9015A |
Working Area (X*Y*Zmm) |
900mm*1500mm*300mm |
X, Y Structure |
Rack gear |
Z Structure |
Ball Screw |
Max Moving Speed |
8000mm/min |
Max Engraving Speed |
6000mm/min |
XYZ traveling positioning accuracy |
±0.04/300mm |
XYZ repositioning accuracy |
±0.04mm |
Spindle power |
4.5KW/5.5KW/6KW/7.5KW |
Spindle Speed |
6000-24000rpm |
Diamerer of cutter |
ф3.175, ф6mm, ф12.7mm, ф2,ф1, etc. |
Voltage |
AC220V,50Hz/60Hz(option,AC380V,50Hz/60Hz) |
Drive type |
Stepper/Servo(option) |
Working Dictate |
G Code*.u00*.mmg*.plt. 2D 3D |
Operating system |
Ncstudio control card/DSP system |
Operating environment |
Windows98/2000/xp |
Interface |
PCI,USB |
Flash memory |
128M(U Disk) |
Software Compatability |
Type3, Ucancam,Artcam Software |
Running Enviroment |
Temperature: 0℃~45℃ |
Relative humidity: 30%~75% |
|
Machine necessary |
Water-tank device, water-cooled system, |
Applicable industry
for Quarried Stone ,artcraft,tombstone,building etc.
Applicable material
tile, marble, granite, white marble, sandstone, glass, metals, 3D natural marble, artificial stone, tombstone,
Payment Terms︰ T/T LC
